| Product description | |
| Status | Active |
| Article number | 3615-0030 |
| Ports |
1 x 300 bit/s to 115.2 kbit/s, RS-232. 1 x 1200 bit/s to 115.2 kbit/s, RS-422/485. 1 x SIM slot. |

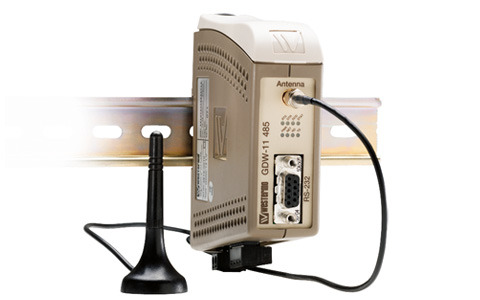

| Description | GSM modem, GSM / GPRS |
| Warranty period | 5 Years |
| Standard compliance | |
| R&TTE |
Article 3.1b EN 301 489-1, EN 301 489-7 Article 3.2 EN 301 489-1, EN 301 419-1, EN 301 511 |
| Reliability prediction | |
| Service life, operating | Operating, 10 year |
| EMC (Electromagnetic Compatibility) | |
| EN 61000-6-2 | Immunity industrial environments |
| EN 55024 | Immunity IT equipment |
| EN 61000-6-3 | Emission residential environments |
| FCC part 15 | Class B |
| EN 50121-4 | Railway signalling and telecommunications apparatus |
| IEC 62236-4 | Railway signalling and telecommunications apparatus |
| EMC specifications | |
| EN 61000-4-2, ESD |
Enclosure contact, ± 6 kV Enclosure air, ± 8 kV |
| IEC 61000-4-3, RF field AM modulated | Enclosure, 20 V/m 80% AM (1 kHz), 80 – 2000 MHz |
| ENV 50204, RF field 900 MHz | Enclosure, 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz |
| EN 61000-4-4, fast transients |
Signal ports, ± 2 kV Power ports, ± 2 kV |
| EN 61000-4-5, surge |
Signal ports unbalanced, ± 2 kV line to earth, ± 2 kV line to line Signal ports balanced, ± 2 kV line to earth, ± 1 kV line to line Power ports, ± 2 kV line to earth, ± 2 kV line to line |
| EN 61000-4-6, conducted RF immunity |
Signal ports, 10 V 80% AM (1 kHz), 0.15 – 230 MHz Power ports, 10 V 80% AM (1 kHz), 0.15 – 230 MHz |
| EN 61000-4-8, power frequency magnetic field | Enclosure, 100 A/m, 50 Hz, 16.7 Hz & 0 Hz |
| EN 61000-4-9, pulsed magnetic field | Enclosure, 1000 A/m, 6.4 / 16 ms 5 pos/5neg pulse in XYZ direction |
| EN 61000-4-11, Voltage dips and interruption |
AC power ports: 10 & 5 000 ms, interruption 10 & 500 ms, 30% reduction 100 & 1 000 ms, 60% reduction |
| EN 61000-4-16, Mains freq. 50 Hz | Signal ports, 100 V 50 Hz line to earth |
| SS 436 15 03, Mains freq. 50 Hz | Signal ports, 250 V 50 Hz line to line |
| EN 61000-4-29, voltage dips and interruption |
DC power ports: 10 & 100 ms, interruption 10 ms, 30% reduction 10 ms, 60% reduction +20% above & –20% below rated voltage |
| EN 55022, radiated RF emission | Enclosure, class B |
| FCC part 15, radiated RF emission | Enclosure, class B |
| EN 55022, conducted emission |
AC power ports, class B DC power ports, class B |
| FCC part 15, conducted emission | AC power ports, class B |
| Safety | |
| Safety | EN 60950, IT equipment |
| EN 60950-1, dielectric strength |
Signal port to other isolated ports, 2 kVrms 50 Hz 1 min Power port to other isolated ports, 3 kVrms 50 Hz 1 min, 2 kVrms 50 Hz 1 min (@ rated power <60 V) |
| Climatic | |
| Temperature, operating | –25 to +50°C (–13 to +122°F) |
| Temperature, storage | –30 to +85°C (–22 to +185°F) |
| Humidity, operating | 5 to 95% relative humidity |
| Humidity, storage | 5 to 95% relative humidity |
| Enclosure | |
| Enclosure | UL 94, PC / ABS, flammability class V-1 |
| Dimensions (W x H x D) | 34 x 123 x 121 mm (1.33 x 4.84 x 4.76) |
| Weight | 0.2 kg |
| Degree of protection | IP 21 |
| Cooling | Convection |
| Mounting | Horizontal on 35 mm DIN-rail |
| Mechanical | |
| IEC 60068-2-6, vibration |
Operating 7.5 mm, 5 – 8 Hz 2 g, 8 – 500 Hz |
| IEC-60068-2-27, shock | Operating, 15 g, 11 ms |
| Interface specifications, power | |
| Rated voltage | 12 to 48 VDC |
| Operating voltage | 10 to 60 VDC |
| Rated current |
350 mA @ 12 VDC 150 mA @ 24 VDC 75 mA @ 48 VDC |
| Rated frequency | DC |
| Inrush current | 0.05A2s |
| Startup current | 0.75A peak |
| Polarity | Reverse polarity protected |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm2 (AWG 24-12) |
| Isolation to | All other ports 3 kVrms 50 Hz 1 min |
| Shielded cable | Not required |
| Interface specifications, RS-232 | |
| Electrical specification | RS-232 V.24 |
| Data rate | 300 bit/s – 115.2 kbit/s |
| Data format | 7 or 8 data bits, Odd, even or no parity, 1 or 2 stop bits |
| Protocol | Transparent |
| Retiming | Yes |
| Transmission range | 15 m / 49 ft |
| Isolation to | Power port 3 kVrms 50 Hz 1 min |
| Connection | 9-pin D-sub female (DCE) and 5 pos Detachable screw terminal (DCE) |
| Connector size | Detachable screw terminal 0.2 – 2.5 mm2 (AWG 24 – 12) |
| Shielded cable | Not required |
| Conductive housing | Isolated to all other circuits |
| Interface specifications, RS-422/485 | |
| Electrical specification |
EIA/TIA-485 ITU V.11 2-wire or 4-wire twisted pair |
| Data rate | 1 200 bit/s – 115.2 kbit/s |
| Data format |
7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits. 9-11 bit words |
| Protocol | Transparent |
| Retiming | Yes |
| Turning time | <10 ms (half duplex) |
| Transmission range | ≤ 1200 m, depending on data rate and cable type (EIA RS-485) |
| Settings | 120 Ω termination and failsafe biasing 680 Ω |
| Protection | Installation Fault Tolerant (up to ±60 V) |
| Isolation to | Power port 3 kVrms 50 Hz 1 min |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm2 (AWG 24 – 12) |
| Shielded cable | Not required |
| Miscellaneous | Do not connect RS-232 and RS-422/485 simultaneously |
| Interface specifications, Antenna | |
| Frequency bands |
GSM900 TX 880 – 915 and RX 925 – 960 MHz GSM1800 TX 1710 – 1785 and RX 1805 – 1880 MHz |
| Data rate | CSD: up to 14.4 kbit/s, GPRS: up to 85.6 kbit/s |
| Connection | SMA female, impedance: 50 ohm |
| Isolation to | Power port 3 kVrms 50 Hz 1 min |
| Interface specification, SIM | |
| Electrical specification | 3 volts SIM supported |
| Isolation to | Power port 3 kVrms 50 Hz 1 min |
