EX防爆认证以太网交换机

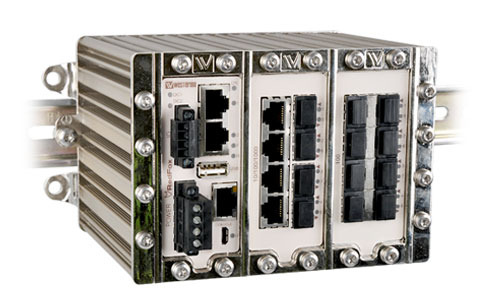

RedFox，RFI-219-F4G-T7G-F8
RedFox是一种专为高网络流量应用而设计得高性能3层工业以太网交换机。该产品拥有多种端口配置，并且这些端口配置还可通过SFP收发器进行进一步自定义设置。RedFox支持威斯特摩 WeOS网络操作系统。
RedFox专为重载工业应用而设计，配备坚固的铝合金外壳。宽范围的输入电源和I/O报警触点，使其在工业应用环境中便于安装，易于监控。
只使用工业级部件使得RedFox的MTBF（平均无故障时间）达到29.7万小时，并且可确保长使用寿命。设备外壳无风扇或散热孔设计，可实现宽工作温度范围–40到+70°C（–40到+158°F）。RedFox已经过威斯特摩和外部测试机构的检测，满足EMC、隔离、振动和冲击标准，并达到重工业环境和铁路轨旁应用的最高水平。
威斯特摩开发的WeOS，能够提供跨平台、面向未来的解决方案。WeOS可提供该类产品中独有的IP安全功能，例如可利用基于内部端口的防火墙功能或者Modbus网关支持来创建多端口DMZ。使用加密VPN可以远程安全访问网络。如需了解WeOS功能的更多信息，请参见WeOS参数表。
阅读更多
-
: Manuals (4)
-
|
Management Guide, WeOS |
2017-05-21 |
-
|
User guide, RFI-EX |
2017-05-21 |
-
|
User guide, RFI-xxx |
2017-05-21 |
-
|
User guide, SFP transceivers |
2017-05-21 |
WeOS
|
Protocols and functionality
|
|
Resiliency and high availability
|
Fast Reconfiguration of Network Topology (FRNT)
FRNT ring coupling
Multilink dual homing
IEEE 802.1D (STP) and IEEE 802.1w (RSTP)
IEEE 802.1AX/802.3ad Link Aggregation
|
|
Layer 2 switching
|
IEEE 802.1Q Static VLAN and VLAN Tagging
IEEE 802.3x Flow Control
IGMPv2/v3 snooping
AVT Dynamic VLAN (Adaptive VLAN Trunking)
Management VLAN (Management Interface concept)
Static Multicast MAC filters
|
|
Layer 2 QoS
|
IEEE 802.1p Class of Service
|
|
Layer 2 security
|
IEEE 802.1X Port Access Control
MAC Authentication
|
|
IP routing, cyber security, firewall and VPN
|
Static IP routing
Dynamic IP routing
• OSPFv2
• RIPv1/v2
• Robust VRRP
• Static Multicast Routing
Stateful Inspection Firewall
• NAT and 1-1 NAT, Proxy ARP for 1-1 NAT
• Port Forwarding
IKEv1, certificates and PSK
• IKEv1
• ESP
• VPN failover
GRE
Multinetting
Loopback Interface
|
|
Manageability
|
Management tools
• Web interface (HTTP and HTTPS or CLI (SSHv2 or Telnet)
• SNMPv1/v2c/v3
• Flexible management of configuration and log files
Flexible alarm/event handling system
USB Fluid configuration (Available for products with USB port)
Digital I/O and Flexible alarm/event handling system
Syslog (log files and remote syslog server)
Port Monitoring
SNTP (NTP client)
PPPoE client
DHCP client
DHCP server including option 82
DHCP relay agent including option 82
DDNS
|
|
SNMP MIB support
|
RFC1213 MIB-2
RFC2863 Interface MIB (ifXTable)
RFC2819 RMON MIB (etherStatsTable)
RFC4188 Bridge MIB
RFC4318 RSTP MIB
RFC4363 Q-BRIDGE MIB
RFC4836 MAU MIB
RFC4133 Entity MIB (entityPhysical)
RFC4319 HDSL2/SHDSL MIB
RFC3433 Entity Sensor MIB
RFC3621 Power Ethernet MIB
WESTERMO PRIVATE MIB
|
