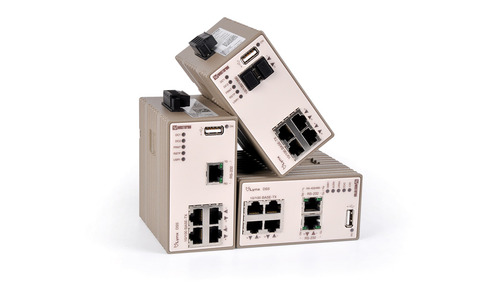

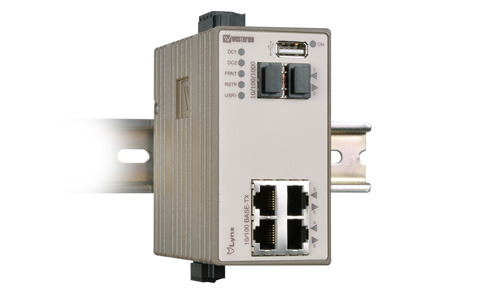

Lynx 106-F2G是一款2层工业以太网交换机,采用威斯特摩WeOS网络操作系统。Lynx是同类交换机中最紧凑、功率要求最低的。Lynx 106-F2G配备4个10/100 Mbit/s端口,此外还有2个支持 Gbit或者100 Mbit SFP收发器的端口。
从坚固可靠的DIN导轨解决方案,到可配置的故障触点和工业级双电源输入,Lynx DSS专为基础的工业应用而设计。
专属的工业级部件使得Lynx的MTBF(平均无故障时间)达到67.7万小时,确保长时间的服务周期。设备外壳无风扇或散热孔设计,工作温度范围可以从–40到+70°C(–40到+158°F)。Lynx DSS已经通过威斯特摩和外部测试机构在EMC、绝缘、振动和冲击等诸多方面的检测,并达到适用于重工业环境和铁路轨旁应用的最高水平。

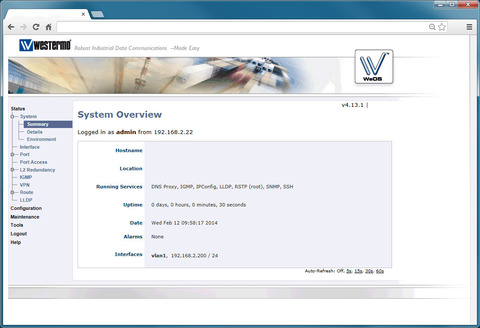

威斯特摩开发的WeOS,能够提供跨平台、面向未来的解决方案。即使是带视频或者EtherNet/IP通信的网络,WeOS也能提供20ms的环网恢复性能。如需了解防爆认证收发器和WeOS功能的更多信息,请参见收发器和WeOS数据表。
Product brochure, Edge networks |
2018-04-18 |
Product brochure, Trackside |
2018-04-18 |
Product brochure, Road transport |
2018-04-18 |
Product brochure, Marine |
2018-04-18 |
Brochure, Oil and gas |
2017-05-21 |
Product brochure, Trackside |
2018-04-18 |
Product brochure, Road transport |
2018-04-18 |
Product brochure, Marine |
2018-04-18 |
Application note, WeOS horseshoe network |
2018-04-18 |
Application note, WeOS port security |
2018-04-18 |
Application note, WeOS tcpdump |
2018-04-18 |
Application note, WeOS upgrade |
2018-04-18 |
Certificate of conformity, Class 1 Div 2 Canada Lynx |
2018-04-18 |
Certificate of conformity, Class 1 Div 2 US Lynx |
2018-04-18 |
Certificate of conformity, DNV Lynx |
2018-04-18 |
Certificate of conformity, IndustryIT Lynx |
2018-04-18 |
Certificate of conformity, UL Lynx |
2018-04-18 |
Declaration of conformity, Lx06-F2G |
2018-04-18 |
Declaration of conformity, SFP |
2018-04-18 |
Data sheet, SFP 1Gbit Transceivers, English |
2018-04-18 |
Data sheet, SFP 100Mbit Transceivers, English |
2018-04-18 |
Data sheet, L106-F2G, English |
2018-04-18 |
Data sheet, WeOS, English |
2018-04-18 |
Data sheet, L106-F2G, German |
2018-04-18 |
Data sheet, L106-F2G, French |
2018-04-18 |
Data sheet, L106-F2G, Swedish |
2018-04-18 |
Product illustration, Lx06-F2G |
2018-04-18 |
Product illustration, Lx06-F2G |
2018-04-18 |
Product illustration, Lx06-F2G |
2018-04-18 |
Product illustration, Lx06-F2G |
2018-04-18 |
Dimensional drawing, Visio, Network products |
2018-04-18 |

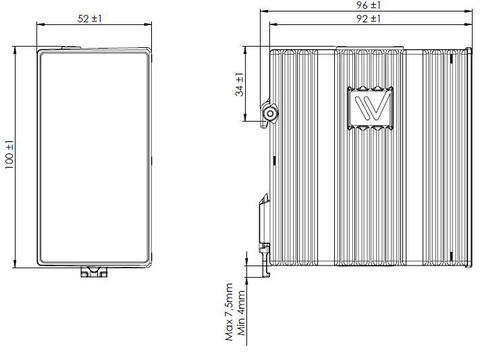

Dimensional drawing, Lynx |
