Product description
|
|
Status
|
Active
|
|
Article number
|
3641-0360
|
|
Ports
|
8 x 10/100BaseTX, M12 contact,
|
|
Description
|

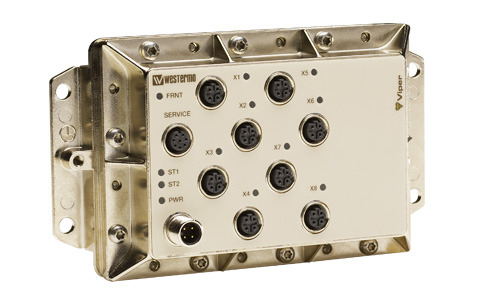

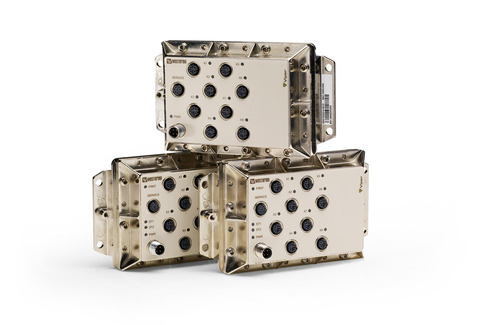

Ultra slim M12 switch platform
|
|
Warranty period
|
5 Years
|
|
Reliability prediction
|
|
MTBF, operating
|
MIL-HDBK- 217F, operating:
Ground Benign:
103 years @ 20ºC
100 years @ 40ºC
90 years @ 60ºC
Ground Mobile:
5.92 years @ 20ºC
5.91 years @ 40ºC
5.88 years @ 60ºC
|
|
Service life, operating
|
Operating, 10 year
|
|
EMC (Electromagnetic Compatibility)
|
|
EN 61000-6-1
|
Immunity residential environments
|
|
EN 61000-6-2
|
Immunity industrial environments
|
|
EN 55024
|
Immunity IT equipment
|
|
EN 61000-6-3
|
Emission residential environments
|
|
EN 61000-6-4
|
Emission industrial environments
|
|
EN-50121-3-2
|
Railway applications - EMC: Rolling stock – Apparatus
|
|
FCC part 15
|
Class B
|
|
EN 50121-4
|
Railway signalling and telecommunications apparatus
|
|
IEC 62236-4
|
Railway signalling and telecommunications apparatus
|
|
EMC specifications
|
|
EN 61000-4-2, ESD
|
Enclosure contact, ± 6 kV (crit A)
Enclosure air, ± 8 kV (crit A)
|
|
IEC 61000-4-3, RF field AM modulated
|
Enclosure:
20 V/m 80% AM (1 kHz),
80 – 2500 MHz (crit A)
|
|
EN 61000-4-4, fast transients
|
Ethernet ports, ± 2 kV (crit A)
Power port, ± 2 kV (crit A)
Earth port, ± 2 kV (crit A)
|
|
EN 61000-4-5, surge
|
Fault port, ± 2 kV line to earth (crit A)
Ethernet ports, ± 2 kV line to earth (crit A)
Power port, ± 2 kV line to earth, ± 2 kV line to line (crit A)
|
|
EN 61000-4-6, conducted RF immunity
|
Ethernet ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz (crit A)
Power port, 10 V 80% AM (1 kHz), 0.15 – 80 MHz (crit A)
|
|
EN 61000-4-8, power frequency magnetic field
|
Enclosure:
1000 A/m 50 Hz
300 A/m 16.7 Hz, 60 Hz, DC (crit A)
|
|
EN 61000-4-9, pulsed magnetic field
|
Enclosure, 300 A/m (crit A)
|
|
EN-50155, voltage dips and interruption
|
DC power ports, 10 ms interruption, 100 ms ±40% voltage variation
|
|
EN 55022, radiated RF emission
|
Enclosure, class B
|
|
FCC part 15, radiated RF emission
|
Enclosure, class B
|
|
EN 55022, conducted emission
|
DC power port & Ethernet ports, class B
|
|
FCC part 15, conducted emission
|
DC power port, class B
|
|
Safety
|
|
Safety
|
EN 60950-1, IT equipment
|
|
EN 50155, dielectric strength
|
Ethernet ports to other isolated ports, 707 VDC 1 min
Power & Fault port to other isolated ports, 2121 VDC 1 min
|
|
Climatic
|
|
Temperature, operating
|
–40 to +70ºC (–40 to +158ºF)
|
|
Temperature, storage
|
–40 to +70ºC (–40 to +158ºF)
|
|
Humidity, operating
|
5 to 95% relative humidity
|
|
Humidity, storage
|
5 to 95% relative humidity
|
|
Enclosure
|
|
Enclosure
|
UL 94, nickel coated zinc, flammability class V-1
|
|
Dimensions (W x H x D)
|
175 x 100 x 50 mm
|
|
Weight
|
0.8 kg
|
|
Degree of protection
|
IP 65 when all ports are protected/connected else IP 40
|
|
Cooling
|
Convection
|
|
Mounting
|
Wall mounted
|
|
Mechanical
|
|
Vibration, random simulated long life
|
Vertical: 7.9 m/s2
Transverse: 7.9 m/s2
Longitudinal: 7.9 m/s2
3 x 5 h
|
|
Vibration, random functional
|
Vertical: 1.0 m/s2
Transverse: 1.0 m/s2
Longitudinal: 1.0 m/s2
3 x 10 min
|
|
Shock, half sine pulses
|
Vertical: 50 m/s2
Transverse: 50 m/s2
Longitudinal: 50 m/s2
30 ms, 3 x 6 shocks
|
|
Shock, sawtooth
|
Vertical: 100 m/s2
Transverse: 100 m/s2
Longitudinal: 100 m/s
211 ms, 3 x 6 shocks
|
|
Interface specifications, power
|
|
Operating voltage
|
Up to 110 VDC
|
|
Rated voltage
|
24 to 110 VDC
|
|
Rated current
|
40 mA @ 110 VDC
140 mA @ 24 VDC
|
|
Rated frequency
|
DC
|
|
Inrush current
|
Max 0.02 A2s @ 24 – 110 VDC
|
|
Startup current
|
7 Apeak @ 24 – 110 VDC
|
|
Polarity
|
Reverse polarity protected
|
|
Redundant power input
|
No
|
|
Isolation to
|
Connections X1 – X8 and to ground, 1500 VAC.
Fault relay belongs to the same isolation group as the power supply lines (fault relay signals are also contained within PWR).
|
|
Connection
|
4 pin male M12 connector with A-code
|
|
Connector size
|
M12, recommended cable area 0.5 mm2 recommended (minimum 0.25 mm2), cable dimensions depend on choice of M12 connector
|
|
Shielded cable
|
Not required, twisted pair is recommended
|
|
Fault relay resistance
|
< 10 Ω
|
|
Operating voltage
|
Up to 110 VDC
|
|
Max continuous current
|
250 mA
|
|
Interface specifications, 10/100BaseTX
|
|
Electrical specification
|
IEEE std 802.3. 2000 Edition
|
|
Data rate
|
10 Mbit/s or 100 Mbit/s, manual or auto
|
|
Duplex
|
Full or half, manual or auto
|
|
Circuit type
|
TNV-1
|
|
Transmission range
|
100 m / 328 ft
|
|
Isolation to
|
Other Ethernet ports, 500 VAC
PWR, 1500 VAC
|
|
Galvanic connection to
|
None, except for shielded contact to housing
|
|
Connection
|
4-pole M12 female with D-code
|
|
Shielded cable
|
Not required, twisted pair is recommended
|
|
Conductive housing
|
Nickel plated zinc, metal housings of X1-X8 also connected to the housing
|
|
Number of ports
|
8 Ethernet (X1-X8)
|
