Product description
|
|
Status
|
Active
|
|
Article number
|
3642-0300
|
|
Ports
|
2 x 192 kbit/s to 15.3 Mbit/s (30.6 with bonding), SHDSL, 2-position detachable screw terminal.
1 x 300 bit/s to 115.2 kbit/s, RS-232, RJ-45.
1 x Digital I/O, 4-position detachable screw terminal.
1 x USB. 1 x 2.5 mm jack, Console.
|
|
Description
|

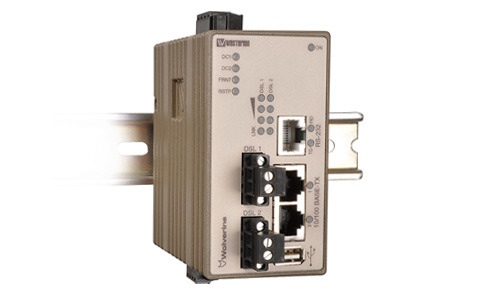

Industrial Ethernet Extender
|
|
Warranty period
|
5 Years
|
|
Reliability prediction
|
|
MTBF, operating
|
437 000 h (MIL-HDBK-217F (Gb) 25°C)
|
|
Service life, operating
|
Operating, 10 years
|
|
EMC (Electromagnetic Compatibility)
|
|
EN 55024 + A1 + A2
|
Electromagnetic compatibility - Immunity IT equipment.
|
|
EN 55022 +A1
|
Information technology equipment.
Radio disturbance characteristics. Limits and methods of measurement.
|
|
EN 61000-6-1
|
Immunity residential environments.
|
|
EN 61000-6-2
|
Immunity industrial environments.
|
|
EN 61000-6-4
|
Emission industrial environments.
|
|
EN 61000-6-3
|
Emission residential, commercial and light-industrial environments.
|
|
FCC part 15
|
Class A and Class B.
|
|
EN 50121-4
|
Railway signalling and telecommunications apparatus.
|
|
IEC 62236-4
|
Railway signalling and telecommunications apparatus.
|
|
EMC specifications
|
|
EN 61000-4-2, ESD
|
Enclosure:
Contact: ± 6 kV
Air: ± 8 kV
|
|
EN 61000-4-4, fast transients
|
Power port, ± 2 kV
Ethernet ports, ± 2 kV
SHDSL ports, ± 2 kV
RS-232 port, ± 2 kV
Status out / Digital in, ± 2 kV
Earth port, ± 1 kV
|
|
EN 61000-4-5, surge
|
Power port:
L-L: ±0.5 kV, 2 Ω, 18 μF
L-E: ±0.5 kV, 12 Ω, 9 μF
L-E: ±2 kV, 42 Ω, 0.5 μF
L-L: ±1 kV, 42 Ω, 0.5 μF
Ethernet ports, L-E: ±2 kV, 2 Ω
SHDSL ports, L-E: ±2 kV, 42Ω, 0.5 μF
RS-232 port, L-E: ±2 kV, 2 Ω
Status out / Digital in, L-E: ±2 kV, 42Ω, 0.5 μF
|
|
EN 61000-4-9, pulsed magnetic field
|
Enclosure, 300 A/m
|
|
EN 61000-4-3, radiated RF immunity
|
Enclosure:
20 V/m 80% AM, 1 kHz sine, 80 – 1000 MHz
12 V/m 80% AM, 1 kHz sine, 1000 – 2700 MHz
|
|
EN 61000-4-6, conducted RF immunity
|
Power port, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz
Ethernet ports, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz
SHDSL ports, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz
RS-232 port, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz
Status out / Digital in, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz
Earth port, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz
|
|
EN 61000-4-29, voltage dips and interruption
|
DC Power port:
10, 20 and 5000 ms, interruption
500 ms, 30% reduction
200 ms, 60% reduction
+20 above & –20% below rated voltage
|
|
EN 55022, radiated RF emission
|
Enclosure, class B
|
|
FCC part 15, radiated RF emission
|
Enclosure, class B
|
|
EN 55022, conducted emission
|
Power port, class B
Ethernet ports, class B
|
|
FCC part 15, conducted emission
|
Power port, class B
|
|
Safety
|
|
Safety
|
EN 60950-1
|
|
EN 60950-1, dielectric strength
|
Power port to other isolated ports, 2000 Vrms 50 Hz 1 min
Ethernet ports to all other isolated ports, 1500 Vrms 50 Hz 1 min
RS-232 port to all other isolated ports, 1500 Vrms 50 Hz 1 min
SHDSL ports to all other isolated ports, 1500 Vrms 50 Hz 1 min
Status out / Digital in port to all other isolated ports,1500 Vrms 50 Hz 1 min
|
|
Climatic
|
|
Temperature, operating
|
–40 to +70ºC (–40 to +158ºF)
|
|
Temperature, storage
|
–40 to +70ºC (–40 to +158ºF)
|
|
Humidity, operating
|
5 to 95% relative humidity
|
|
Humidity, storage
|
5 to 95% relative humidity
|
|
Enclosure
|
|
Enclosure
|
EN 60950-1, Zinc (fire enclosure)
|
|
Dimensions (W x H x D)
|
Without connectors, 52.5 x 100 x 92 mm
With connectors, 52.5 x 100 x 111 mm
|
|
Weight
|
0.8
|
|
Degree of protection
|
IP 40
|
|
Cooling
|
Convection
|
|
Mounting
|
Horizontal on 35 mm DIN-rail
|
|
Mechanical
|
|
IEC 60068-2-6, vibration
|
Operating:
5 – 20 Hz: 2 m²/s³
20 – 500 Hz: – 3 dB/oct
3 axis = 3 * 30 min
|
|
IEC-60068-2-27, shock
|
Operating:
6 ms 1000 m/s²
6 directions, 3 shocks/direction
|
|
IEC 60068-2-27, bump
|
Operating:
11 ms 100 m/s²
6 directions, 100 shocks/direction
|
|
Interface specifications, power
|
|
Rated voltage
|
24 to 48 VDC
|
|
Operating voltage
|
19 to 60 VDC
|
|
Rated current
|
245 mA (405 mA) @ 24 VDC (with 500 mA USB load)
124 mA (200 mA) @ 48 VDC (with 500 mA USB load)
|
|
Rated frequency
|
DC
|
|
Inrush current
|
10.6 mA²s @ 24 VDC
24.7 mA²s @ 36 VDC
42.4 mA²s @ 48 VDC
|
|
Startup current
|
2 x Rated current
|
|
Polarity
|
Reverse polarity protected
|
|
Redundant power input
|
Yes
|
|
Isolation to
|
All other
|
|
Connection
|
Detachable screw terminal
|
|
Connector size
|
0.2 – 2.5 mm² (AWG 24 – 13)
Connect the unit using at least 18 AWG (0.75 mm²) wiring
|
|
Shielded cable
|
Not required
|
|
Interface specifications, RS-232
|
|
Electrical specification
|
EIA RS-232
|
|
Data rate
|
300 bit/s to 115.2 kbit/s
|
|
Data format
|
7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits
|
|
Protocol
|
Transparent, optimised by packing algorithm
|
|
Circuit type
|
SELV
|
|
Transmission range
|
15 m / 49 ft
|
|
Isolation to
|
Power, SHDSL, Ethernet
|
|
Galvanic connection to
|
USB, Console
|
|
Connection
|
RJ-45 according to EIA-561
|
|
Shielded cable
|
Recommended
|
|
Conductive housing
|
Yes
|
|
Number of ports
|
1
|
|
Interface specifications, 10/100BaseTX
|
|
Electrical specification
|
IEEE std 802.3. 2005 Edition
|
|
Data rate
|
10 Mbit/s, 100 Mbit/s, manual or auto
|
|
Duplex
|
Full or half, manual or auto
|
|
Circuit type
|
TNV-1
|
|
Transmission range
|
Up to 150 m, with CAT5e cable or better
|
|
Isolation to
|
All other
|
|
Connection
|
RJ-45, auto MDI/MDIX
|
|
Shielded cable
|
Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails.
|
|
Conductive housing
|
Yes
|
|
Number of ports
|
2
|
|
Interface specifications, console
|
|
Electrical specification
|
LVTTL/LVCMOS-level
|
|
Data rate
|
115.2 kbit/s
|
|
Data format
|
8 data bits, none parity, 1 stop bit, no flow control
|
|
Circuit type
|
SELV
|
|
Connection
|
2.5 mm jack, use Westermo cable 1211-2027
|
|
Interface specifications, USB
|
|
Electrical specification
|
USB 2.0 host interface
|
|
Data rate
|
Up to 12 Mbit/s (full-speed mode)
|
|
Circuit type
|
SELV
|
|
Maximum supply current
|
500 mA
|
|
Connection
|
USB receptacle connector type A
|
|
Interface specifications, I/O relay output
|
|
Maximum voltage / current
|
60 VDC / 80 mA
|
|
Connect resistance
|
Max 30 Ω
|
|
Isolation to
|
All other
|
|
Connection
|
Detachable screw terminal
|
|
Connector size
|
0.2 – 2.5 mm² (AWG 24 – 13)
|
|
Interface specifications, I/O / Digital input
|
|
Maximum voltage
|
60 VDC
|
|
Load current
|
2 mA
|
|
Voltage levels
|
Logic one >12 V, Logic zero <1V
|
|
Isolation to
|
All other
|
|
Connection
|
Detachable screw terminal
|
|
Connector size
|
0.2 – 2.5 mm² (AWG 24 – 13)
|
|
Interface specifications, DSL
|
|
Electrical specification
|
ITU-T G.991.2 Annex B
|
|
Data rate
|
192 kbit/s to 30.6 Mbit/s with bonding
|
|
Protocol
|
EFM according to IEEE 802.3-2005
|
|
Transmission range
|
According to ITU-T G.991.2 depending on line quality
|
|
Isolation to
|
All other
|
|
Connection
|
Detachable screw terminal
|
|
Connector size
|
0.2 – 2.5 mm² (AWG 24 – 13)
|
|
Shielded cable
|
Not required
|
|
Number of ports
|
2
|
