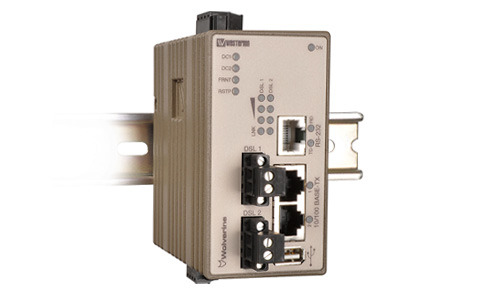

威斯特摩以太网扩展器技术基于SHDSL，能够重新利用许多类型的原有铜电缆，从而在安装新系统时显著节约成本。Wolverine DDW-242能够创建超长距离（最大15 km（9.3 mi））的高效以太网网络，一根简单的双绞线电缆的数据传输速率可高达15.3 Mbit/s。通过“胶合”双绞线，该传输速率可翻倍到30.6 Mbit/s。集成交换机能够连接2个以太网设备，一个RS-232端口能够将一个遗留设备纳入到IP网络中。
只使用工业级部件使得Wolverine 的MTBF（平均故障间隔时间）达到43.7万小时并且可确保长使用寿命。机箱内无活动零部件或冷却孔，可实现宽工作温度范围–40到+70°C（–40到+158°F）。Wolverine已经过威斯特摩和外部测试机构的检测，可满足大多数EMC、隔离、振动和冲击标准，达到适用于重工业环境和铁路轨旁应用的最高水平。

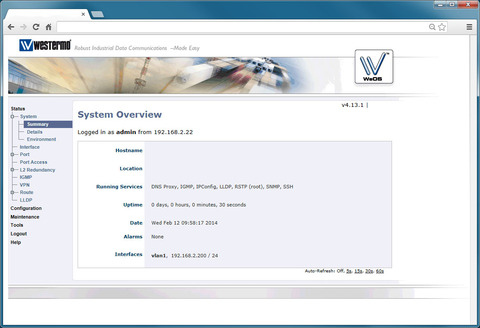

WeOS由威斯特摩开发，使我们能够提供跨平台、面向未来的解决方案。WeOS可提供该类产品中独有的IP安全功能，例如可利用基于防火墙功能的内部端口或者Modbus网关支持来创建多端口DMZ。使用加密VPN可以远程安全访问网络。
如需WeOS功能的更多信息，请参见WeOS数据表。
 |
