| Product description | |
| Status | Active |
| Article number |
3645-0050, MCW-211-MM-LC2 3645-0001, MCW-211-MM-SC2 3645-0010, MCW-211-MM-ST2 3645-0020, MCW-211-SM-SC15 3645-0030, MCW-211-SM-LC15 3645-0040, MCW-211-SM-LC40 |
| Ports |
1 x 10 Mbit/s or 100 Mbit/s, Ethernet TX 1 x 100 Mbit/s, Ethernet FX |

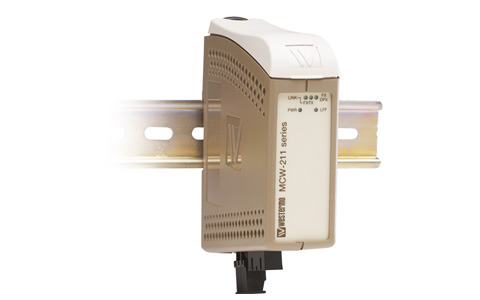

| Description | Industrial Ethernet Media Converter |
| Warranty period | 5 Years |
| Approvals | |
| Marine |
DNV Standard for Certification no. 2.4 Applicable only for 3645-0030, 3645-0040 , 3645-0050 (MCW-211-SM-LC15, MCW-211-SM-LC40, MCW-211-MM-LC2) |
| Reliability prediction | |
| Service life, operating | Operating, 10 year |
| EMC (Electromagnetic Compatibility) | |
| EN 61000-6-2 | Immunity industrial environments |
| EN 61000-6-4 | Emission industrial environments |
| EMC specifications | |
| EN 61000-4-2, ESD |
Enclosure contact, ± 4 kV Enclosure air, ± 8 kV |
| IEC 61000-4-3, RF field AM modulated | Enclosure, 10 V/m 80% AM (1 kHz), 80 – 2700 MHz |
| EN 61000-4-4, fast transients |
Signal ports, ± 1 kV Power ports, ± 2 kV |
| EN 61000-4-5, surge |
Signal ports balanced, ± 2 kV line to earth, ± 1 kV line to line Power ports, ± 2 kV line to earth, ± 2 kV line to line |
| EN 61000-4-6, conducted RF immunity |
Signal ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz Power ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz |
| EN 61000-4-29, voltage dips and interruption |
DC power ports: 10 & 100 ms, interruption 10 ms, 30% reduction 10 ms, 60% reduction +20% above & –20% below rated voltage |
| EN 55022, radiated RF emission | Enclosure, class A |
| EN 55022, conducted emission | DC power ports, class A |
| Safety | |
| EN 60950-1, dielectric strength | Signal port to other isolated ports, 1.5 kVrms 50 Hz 1 min |
| Climatic | |
| Temperature, operating | –25 to +70ºC (–13 to +158ºF) |
| Temperature, storage | –40 to +70ºC (–40 to +158ºF) |
| Humidity, operating | 5 to 95% relative humidity |
| Humidity, storage | 5 to 95% relative humidity |
| Enclosure | |
| Enclosure | UL 94, PC / ABS, flammability class V-1 |
| Dimensions (W x H x D) | 34 x 123 x 121 mm (1.33 x 4.84 x 4.76) |
| Weight | 0.25 kg |
| Degree of protection | IP 21 |
| Cooling | Convection |
| Mounting | Horizontal on 35 mm DIN-rail |
| Mechanical | |
| IEC 60068-2-6, vibration |
Operating: 7.5 mm, 5 – 8 Hz 2 g, 8 – 500 Hz 15 g, 11 ms |
| Interface specifications, power | |
| Rated voltage | 12 to 48 VDC |
| Operating voltage | 10 to 60 VDC |
| Rated current |
200 mA @ 12 VDC 100 mA @ 24 VDC 50 mA @ 48 VDC |
| Rated frequency | DC |
| Inrush current | 0.03 A²s @ 12 VDC |
| Startup current | 0.75 A peak |
| Polarity | Reverse polarity protected |
| Redundant power input | Yes |
| Isolation to |
Ethernet TX Ethernet FX |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm² (AWG 24 – 12) |
| Shielded cable | Not required |
| Interface specifications, 10/100BaseTX | |
| Electrical specification | IEEE std 802.3. 2000 Edition |
| Data rate | 10 Mbit/s or 100 Mbit/s, manual or auto |
| Duplex | Full or half, manual or auto |
| Transmission range | 100 m / 327 ft |
| Isolation to | Power |
| Connection | RJ 45 |
| Interface specifications, 10/100BaseFX | |
| Electrical specification | IEEE std 802.3. 2000 Edition |
| Data rate | 100 Mbit/s |
| Duplex | Full or half |
| Connection | SC, ST or LC |
