Product description
|
|
Status
|
Active
|
|
Article number
|
3644-0001
|
|
Ports
|
5 x RJ-45, 10 Mbit/s or 100 Mbit/s
|
|
Description
|

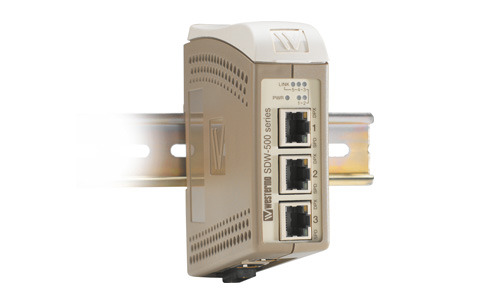

Industrial Ethernet 5-port Switch
|
|
Warranty period
|
5 years
|
|
Approvals
|
|
Marine
|
DNV Standard for Certification no. 2.4 4
|
|
Reliability prediction
|
|
MTBF, operating
|
674,293 h
|
|
EMC (Electromagnetic Compatibility)
|
|
EN 61000-6-2
|
Immunity industrial environments
|
|
EN 61000-6-3
|
Emission residential environments
|
|
EN 61000-6-4
|
Emission industrial environments
|
|
Climatic
|
|
Temperature, operating
|
–25 to +70°C (–13 to +158°F)
|
|
Temperature, storage
|
–25 to +70°C (–13 to +158°F)
|
|
Humidity, operating
|
5 to 95% (non-condensing)
|
|
Humidity, storage
|
5 to 95% (condensation allowed outside packaging)
|
|
Enclosure
|
|
Enclosure
|
-
|
|
Dimensions (W x H x D)
|
35 x 121 x 119 mm
|
|
Degree of protection
|
IP21
|
|
Weight
|
0,2 kg
|
|
Mounting
|
DIN-rail
|
|
Interface specifications, power
|
|
Rated voltage
|
12 –48 VDC, polarity protected
|
|
Operating voltage
|
9.6 – 57.6 VDC
|
|
Rated current
|
@12 VDC power input 320 mA
|
|
Rated frequency
|
DC
|
|
Connection
|
Detachable screw terminal
|
|
Connector size
|
0.2 – 2.5 mm2 (AWG 24-12)
|
|
Interface specifications, 10/100BaseTX
|
|
Electrical specification
|
IEEE std 802.3. 2000 edition
|
|
Data rate
|
10 Mbit/s or 100 Mbit/s, manual or auto
|
|
Duplex
|
Full or half, manual or auto
|
|
Connection
|
SC, ST or LC
|
|
Circuit type
|
Optical
|
|
Transmission range
|
100 m
|
