Product description
|
|
Status
|
Active
|
|
Article number
|
3621-5110
|
|
Ports
|
1 x 2 positon detachable scerw terminal, 192 kbit/s to 15304 kbit/s
1 x RJ-45, 10 Mbit/s, 100 Mbit/s, manual or auto
|
|
Description
|

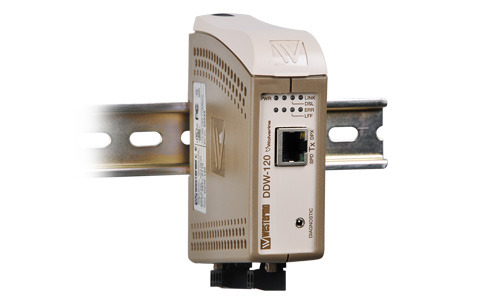

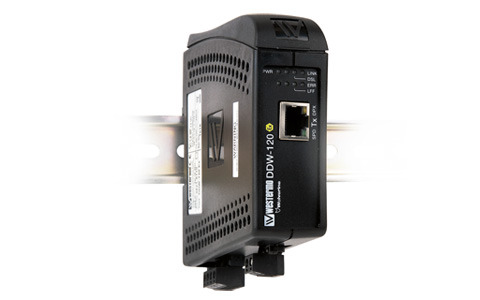

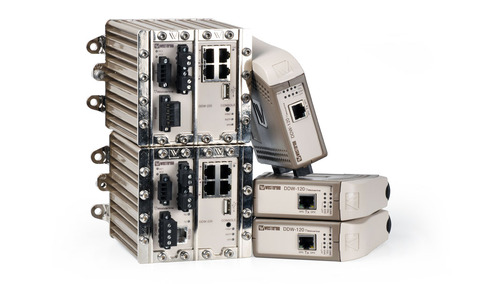

Ethernet SHDSL Extender
|
|
Warranty period
|
5 Years
|
|
Approvals
|
|
Hazardous locations
|
FM Approvals, Class I, Division 2
|
|
Reliability prediction
|
|
MTBF, operating
|
600 000 h, MIL-HDBK- 217F
|
|
Service life, operating
|
10 year
|
|
EMC (Electromagnetic Compatibility)
|
|
EN 61000-6-2
|
Immunity industrial environments
|
|
EN 55024
|
Immunity IT equipment
|
|
EN 61000-6-3
|
Emission residential environments
|
|
FCC part 15
|
Class B
|
|
EN 50121-4
|
Railway signalling and telecommunications
|
|
EMC specifications
|
|
EN 61000-4-2, ESD
|
Contact: ± 6 kV
Air: ± 8 kV
|
|
IEC 61000-4-3, RF field AM modulated
|
10 V/m 80% AM (1 kHz), 80 – 1 000 MHz
20 V/m 80% AM (1 kHz), 80 – 2 000 MHz
|
|
ENV 50204, RF field 900 MHz
|
20 V/m pulse modulated 200 Hz, 900 ± 5 MHz
|
|
EN 61000-4-4, fast transients
|
Signal ports: ± 2 kV
Power ports: ± 2 kV
|
|
EN 61000-4-5, surge
|
Signal ports unbalanced: ± 2 kV line to earth, ± 2 kV line to line
Signal ports balanced: ± 2 kV line to earth, ± 1 kV line to line
Power ports: ± 2 kV line to earth, ± 2 kV line to line
|
|
EN 61000-4-6, conducted RF immunity
|
Signal ports: 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Power ports: 10 V 80% AM (1 kHz), 0.15 – 80 MHz
|
|
EN 61000-4-8, power frequency magnetic field
|
100 A/m, 50 Hz, 16.7 Hz & 0 Hz
|
|
EN 61000-4-9, pulsed magnetic field
|
300 A/m, 6.4 / 16 µs pulse
|
|
EN 61000-4-11, Voltage dips and interruption
|
AC power ports
10 & 5 000 ms, interruption
10 & 500 ms, 30% reduction
100 & 1 000 ms, 60% reduction
|
|
EN 61000-4-16, Voltage dips and interuption
|
AC power ports,
10 & 5 000 ms, interruption
10 & 500 ms, 30% reduction
100 & 1 000 ms, 60% reduction
|
|
EN 61000-4-16, Mains freq. 50 Hz
|
Signal ports, 100 V 50 Hz line to earth
|
|
SS 436 15 03, Mains freq. 50 Hz
|
Signal ports, 250 V 50 Hz line to earth
|
|
EN 55022, radiated RF emission
|
Class B
|
|
FCC part 15, radiated RF emission
|
Class B
|
|
EN 55022, conducted emission
|
AC/DC power ports, Class B
|
|
FCC part 15, conducted emission
|
AC power ports, Class B
|
|
EN 55022, conducted emission
|
AC/DC power ports, Class B
|
|
Safety
|
|
Safety
|
W-mo, EN 60079-0 and EN 60079-15
|
|
EN 60950-1, dielectric strength
|
Signal port to other isolated ports, 2 kVrms 50 Hz 1 min
Power port to other isolated ports, 3 kVrms 50 Hz 1 min
2 kVrms 50 Hz 1 min (@ rated power <60 V)
|
|
Climatic
|
|
Temperature, operating
|
–40 to +70ºC (–40 to +158ºF)
|
|
Maximum surface temperature
|
135°C (temperature class T4)
|
|
Temperature, storage
|
–40 to +70ºC (–40 to +158ºF)
|
|
Humidity, operating
|
5 to 95% relative humidity
|
|
Humidity, storage
|
5 to 95% relative humidity
|
|
Enclosure
|
|
Enclosure
|
Cabelec 6141
|
|
Dimensions (W x H x D)
|
34 x 123 x 121 mm (1.33 x 4.84 x 4.76)
|
|
Weight
|
0.2 kg
|
|
Degree of protection
|
IP 21
|
|
Cooling
|
Convection
|
|
Mounting
|
Horizontal on 35 mm DIN-rail
|
|
Mechanical
|
|
IEC 60068-2-6, vibration
|
7.5 mm, 5 – 8 Hz
2 g, 8 – 500 Hz
|
|
IEC-60068-2-27, shock
|
15 g, 11 ms
|
|
Interface specifications, power
|
|
Rated voltage
|
12 to 48 VDC
|
|
Operating voltage
|
10 to 60 VDC
|
|
Rated current
|
240 mA @ 12 VDC
110 mA @ 24 VDC
60 mA @ 48 VDC
|
|
Rated frequency
|
DC
|
|
Inrush current
|
0.23 A2s
|
|
Startup current
|
0.65 Apeak
|
|
Polarity
|
Reverse polarity protected
|
|
Redundant power input
|
Yes
|
|
Isolation to
|
All other
|
|
Connection
|
2.5 mm jack, use Westermo cable 1211-2027
|
|
Connector size
|
0.2 – 2.5 mm2 (AWG 24 – 12)
|
|
Shielded cable
|
Not required
|
|
Interface specifications, service
|
|
Electriclal specification
|
TTL-level
|
|
Data rate
|
115.2 kbit/s
|
|
Data format
|
8 data bits, none parity, 1 stop bits, no flow control
|
|
Circuit type
|
SELV
|
|
Transmission range
|
15 m
|
|
Isolation to
|
All other
|
|
Galvanic connection to
|
None
|
|
Connection
|
2.5 mm jack, use Westermo cable 1211-2027
|
|
Interface specifications, DSL
|
|
Electrical specification
|
IEEE G.991.2 Annex B
|
|
Data rate
|
192 kbit/s to 15304 kbit/s
|
|
Protocol
|
EFM according to IEEE 802.3-2004
|
|
Transmission range
|
According to ITU-T G.991.2 depending on the line quality
|
|
Protection
|
Overcurrent / overvoltage protection circuit and varistor
|
|
Isolation to
|
All other
|
|
Connection
|
Detachable screw terminal
|
|
Connector size
|
0.2 – 2.5 mm2 (AWG 24 - 12)
|
|
Shielded cable
|
Not required
|
|
Electrical specification
|
IEEE std 802.3. 2000 Edition
|
|
Data rate
|
10 Mbit/s, 100 Mbit/s, manual or auto
|
|
Duplex
|
Full or half, manual or auto
|
|
Circuit type
|
SELV
|
|
Transmission range
|
100 m
|
|
Isolation to
|
All other
|
|
Connection
|
RJ-45 MDI or auto MDI/MDI-X
|
|
Shielded cable
|
Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails.
|
|
Conductive housing
|
Isolated to all other circuits
|
|
Miscellaneous
|
If Auto-Neg. is disabled then this interface will be set MDI
|
|
Number of ports
|
1
|
