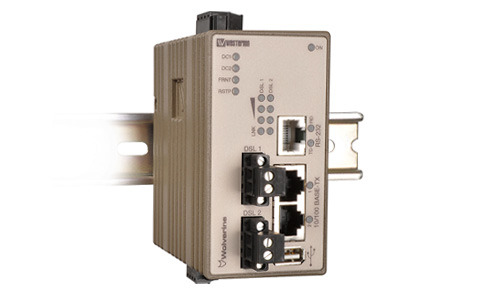

威斯特摩以太网扩展器技术基于SHDSL，能够重新利用许多类型的原有铜电缆，从而在安装新系统时显著节约成本。Wolverine DDW-142能够创建超长距离（最大15 km（9.3 mi））的高效以太网网络，一根简单的双绞线电缆的数据传输速率可高达15.3 Mbit/s。通过“胶合”双绞线，该传输速率可翻倍到30.4 Mbit/s。集成交换机能够连接2个以太网设备，一个RS-232端口能够将一个遗留设备纳入到IP网络中。
WeOS（威斯特摩操作系统）开发用于提供跨平台、面向未来的解决方案。WeOS可为该类产品提供独有的安全功能，允许DDW-142利用威斯特摩 FRNT协议或者工业标准STP/RSTP成为弹性多介质环网的一部分。WeOS开发用于提供工业网络解决方案，具有卓越的串行连接性能 – 从模拟旧AT调制解调器，转换Modbus RTU到TCP，直到封装串行数据到IP数据包中。
DDW-142拥有难以置信的灵活性和易用性。无需进行任何类型的配置，即可创建一个点对点或者多点网络。然而，如果有更复杂的解决方案需要一些网络配置，则可以使用网页界面轻松完成。另外还可提供CLI界面，以便网络专业人员可以方便地快速控制设备。一旦系统配置完成，则简单的解决方案还可用于维护工程师 – USB备份和恢复意味着可以从USB闪存盘自动下载存储的配置。
DDW-142通常用于铁路、道路或者故障可能导致巨大成本的公共事业等应用中。所有威斯特摩产品设计时都以高MTBF为目标，以提高运行可靠性以及提供长使用寿命。甚至具有SHDSL诊断和管理功能，能够指示线路退化从而允许计划维护。由于产品专为这些应用设计，威斯特摩还确保产品已经过测试，以确保设备可在极端温度、EMC和振动环境中运行，并仍然提供可靠的通信。
| Protocols and functionality | |
| Serial port technology | Serial Over IP (Serial Extender and Virtual Serial Port) Modem Replacement Modbus Gateway |
| Resiliency and high availability | Fast Reconfiguration of Network Topology (FRNT) FRNT Link Health Protocol (FLHP) IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid STP (RSTP) |
| Layer 2 switching | IEEE 802.1Q Static VLAN and VLAN Tagging IEEE 802.3x Flow Control IGMPv2/v3 snooping AVT Dynamic VLAN (Adaptive VLAN Trunking) Management VLAN (Management Interface concept) Static Multicast MAC filters |
| Layer 2 QoS | IEEE 802.1p Class of Service Classification: VLAN tag, VLAN ID, IP DSCP/ToS, Port ID |
| Layer 2 security | IEEE 802.1X Port Access Control MAC Authentication |
| Manageability | Management tools • Web interface (HTTP and HTTPS) • CLI via console port and SSHv2 and Telnet • Westermo IPConfig tool • SNMPv1/v2c/v3 • Flexible management of configuration and log files • Secure Copy (SCP) • Local file management via HTTP, FTP, TFTP and SCP • Load/save files from/to USB memory stick Flexible alarm/event handling system Syslog (log files and remote syslog server) Digital I/O Port Monitoring SNTP (NTP client) PPPoE client DHCP client DHCP relay agent (DHCP option 82) DDNS |
| SNMP MIB support | RFC1213 MIB-2 RFC2863 Interface MIB (ifXTable) RFC2819 RMON MIB (etherStatsTable) RFC4188 Bridge MIB RFC4318 RSTP MIB RFC4363 Q-BRIDGE MIB (dot1qVlan and dot1qVlanStaticTable) RFC4836 MAU MIB (dot3IfMauBasicGroup and dot3IfMauAutoNegGroup) RFC4133 Entity MIB (entityPhysical) RFC3433 Entity Sensor MIB WESTERMO PRIVATE MIB |
| Product description | |
| Status | Active |
| Article number | 3642-0300 |
| Ports | 2 x 192 kbit/s to 15.3 Mbit/s (30.6 with bonding), SHDSL, 2-position detachable screw terminal. 1 x 300 bit/s to 115.2 kbit/s, RS-232, RJ-45. 1 x Digital I/O, 4-position detachable screw terminal. 1 x USB. 1 x 2.5 mm jack, Console. |
| Description | Industrial Ethernet Extender |
| Warranty period | 5 Years |
| Reliability prediction | |
| MTBF, operating | 437 000 h (MIL-HDBK-217F (Gb) 25°C) |
| Service life, operating | Operating, 10 years |
| EMC (Electromagnetic Compatibility) | |
| EN 55024 + A1 + A2 | Electromagnetic compatibility - Immunity IT equipment. |
| EN 55022 +A1 | Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement. |
| EN 61000-6-1 | Immunity residential environments. |
| EN 61000-6-2 | Immunity industrial environments. |
| EN 61000-6-4 | Emission industrial environments. |
| EN 61000-6-3 | Emission residential, commercial and light-industrial environments. |
| FCC part 15 | Class A and Class B. |
| EN 50121-4 | Railway signalling and telecommunications apparatus. |
| IEC 62236-4 | Railway signalling and telecommunications apparatus. |
| EMC specifications | |
| EN 61000-4-2, ESD | Enclosure: Contact: ± 6 kV Air: ± 8 kV |
| EN 61000-4-4, fast transients | Power port, ± 2 kV Ethernet ports, ± 2 kV SHDSL ports, ± 2 kV RS-232 port, ± 2 kV Status out / Digital in, ± 2 kV Earth port, ± 1 kV |
| EN 61000-4-5, surge | Power port: L-L: ±0.5 kV, 2 Ω, 18 μF L-E: ±0.5 kV, 12 Ω, 9 μF L-E: ±2 kV, 42 Ω, 0.5 μF L-L: ±1 kV, 42 Ω, 0.5 μF Ethernet ports, L-E: ±2 kV, 2 Ω SHDSL ports, L-E: ±2 kV, 42Ω, 0.5 μF RS-232 port, L-E: ±2 kV, 2 Ω Status out / Digital in, L-E: ±2 kV, 42Ω, 0.5 μF |
| EN 61000-4-9, pulsed magnetic field | Enclosure, 300 A/m |
| EN 61000-4-3, radiated RF immunity | Enclosure: 20 V/m 80% AM, 1 kHz sine, 80 – 1000 MHz 12 V/m 80% AM, 1 kHz sine, 1000 – 2700 MHz |
| EN 61000-4-6, conducted RF immunity | Power port, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz Ethernet ports, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz SHDSL ports, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz RS-232 port, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz Status out / Digital in, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz Earth port, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz |
| EN 61000-4-29, voltage dips and interruption | DC Power port: 10, 20 and 5000 ms, interruption 500 ms, 30% reduction 200 ms, 60% reduction +20 above & –20% below rated voltage |
| EN 55022, radiated RF emission | Enclosure, class B |
| FCC part 15, radiated RF emission | Enclosure, class B |
| EN 55022, conducted emission | Power port, class B Ethernet ports, class B |
| FCC part 15, conducted emission | Power port, class B |
| Safety | |
| Safety | EN 60950-1 |
| EN 60950-1, dielectric strength | Power port to other isolated ports, 2000 Vrms 50 Hz 1 min Ethernet ports to all other isolated ports, 1500 Vrms 50 Hz 1 min RS-232 port to all other isolated ports, 1500 Vrms 50 Hz 1 min SHDSL ports to all other isolated ports, 1500 Vrms 50 Hz 1 min Status out / Digital in port to all other isolated ports,1500 Vrms 50 Hz 1 min |
| Climatic | |
| Temperature, operating | –40 to +70ºC (–40 to +158ºF) |
| Temperature, storage | –40 to +70ºC (–40 to +158ºF) |
| Humidity, operating | 5 to 95% relative humidity |
| Humidity, storage | 5 to 95% relative humidity |
| Enclosure | |
| Enclosure | EN 60950-1, Zinc (fire enclosure) |
| Dimensions (W x H x D) | Without connectors, 52.5 x 100 x 92 mm With connectors, 52.5 x 100 x 111 mm |
| Weight | 0.8 |
| Degree of protection | IP 40 |
| Cooling | Convection |
| Mounting | Horizontal on 35 mm DIN-rail |
| Mechanical | |
| IEC 60068-2-6, vibration | Operating: 5 – 20 Hz: 2 m²/s³ 20 – 500 Hz: – 3 dB/oct 3 axis = 3 * 30 min |
| IEC-60068-2-27, shock | Operating: 6 ms 1000 m/s² 6 directions, 3 shocks/direction |
| IEC 60068-2-27, bump | Operating: 11 ms 100 m/s² 6 directions, 100 shocks/direction |
| Interface specifications, power | |
| Rated voltage | 24 to 48 VDC |
| Operating voltage | 19 to 60 VDC |
| Rated current | 245 mA (405 mA) @ 24 VDC (with 500 mA USB load) 124 mA (200 mA) @ 48 VDC (with 500 mA USB load) |
| Rated frequency | DC |
| Inrush current | 10.6 mA²s @ 24 VDC 24.7 mA²s @ 36 VDC 42.4 mA²s @ 48 VDC |
| Startup current | 2 x Rated current |
| Polarity | Reverse polarity protected |
| Redundant power input | Yes |
| Isolation to | All other |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm² (AWG 24 – 13) Connect the unit using at least 18 AWG (0.75 mm²) wiring |
| Shielded cable | Not required |
| Interface specifications, RS-232 | |
| Electrical specification | EIA RS-232 |
| Data rate | 300 bit/s to 115.2 kbit/s |
| Data format | 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits |
| Protocol | Transparent, optimised by packing algorithm |
| Circuit type | SELV |
| Transmission range | 15 m / 49 ft |
| Isolation to | Power, SHDSL, Ethernet |
| Galvanic connection to | USB, Console |
| Connection | RJ-45 according to EIA-561 |
| Shielded cable | Recommended |
| Conductive housing | Yes |
| Number of ports | 1 |
| Interface specifications, 10/100BaseTX | |
| Electrical specification | IEEE std 802.3. 2005 Edition |
| Data rate | 10 Mbit/s, 100 Mbit/s, manual or auto |
| Duplex | Full or half, manual or auto |
| Circuit type | TNV-1 |
| Transmission range | Up to 150 m, with CAT5e cable or better |
| Isolation to | All other |
| Connection | RJ-45, auto MDI/MDIX |
| Shielded cable | Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails. |
| Conductive housing | Yes |
| Number of ports | 2 |
| Interface specifications, console | |
| Electrical specification | LVTTL/LVCMOS-level |
| Data rate | 115.2 kbit/s |
| Data format | 8 data bits, none parity, 1 stop bit, no flow control |
| Circuit type | SELV |
| Connection | 2.5 mm jack, use Westermo cable 1211-2027 |
| Interface specifications, USB | |
| Electrical specification | USB 2.0 host interface |
| Data rate | Up to 12 Mbit/s (full-speed mode) |
| Circuit type | SELV |
| Maximum supply current | 500 mA |
| Connection | USB receptacle connector type A |
| Interface specifications, I/O relay output | |
| Maximum voltage / current | 60 VDC / 80 mA |
| Connect resistance | Max 30 Ω |
| Isolation to | All other |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm² (AWG 24 – 13) |
| Interface specifications, I/O / Digital input | |
| Maximum voltage | 60 VDC |
| Load current | 2 mA |
| Voltage levels | Logic one >12 V, Logic zero <1V |
| Isolation to | All other |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm² (AWG 24 – 13) |
| Interface specifications, DSL | |
| Electrical specification | ITU-T G.991.2 Annex B |
| Data rate | 192 kbit/s to 30.6 Mbit/s with bonding |
| Protocol | EFM according to IEEE 802.3-2005 |
| Transmission range | According to ITU-T G.991.2 depending on line quality |
| Isolation to | All other |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm² (AWG 24 – 13) |
| Shielded cable | Not required |
| Number of ports | 2 |
