| Product description | |
| Status | Active |
| Article number | 3609-5010 |
| Ports |
1 x 9-pin D-sub (male), RS-232 1 x 4-position detachable screw terminal, RS-422 4 x RJ-45, Ethernet TX |

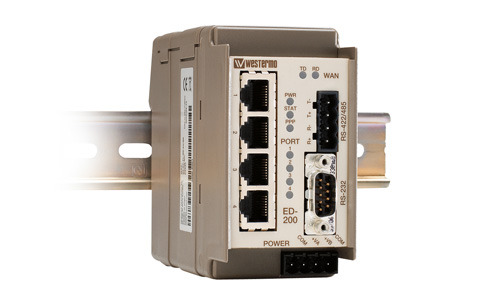

| Description | Ethernet Router |
| Warranty period | 5 Years |
| Standard compliance | |
| PSTN | ETSI TS103 021-1, ETSI TS103 021-2, ETSI TS103 021-3 |
| Reliability prediction | |
| Service life, operating | Operating, 10 year |
| EMC (Electromagnetic Compatibility) | |
| EN 61000-6-2 | Immunity industrial environments |
| EN 55024 | Immunity IT equipment |
| EN 61000-6-4 | Emission industrial environments |
| FCC part 15 | Class A |
| EN 50121-4 | Railway signalling and telecommunications apparatus |
| IEC 62236-4 | Railway signalling and telecommunications apparatus |
| EMC specifications | |
| EN 61000-4-2, ESD |
Enclosure contact, ± 6 kV Enclosure air, ± 8 kV |
| IEC 61000-4-3, RF field AM modulated | Enclosure, 10 V/m 80% AM (1 kHz), 80 – 1 000 MHz |
| ENV 50204, RF field 900 MHz | Enclosure, 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz |
| EN 61000-4-4, fast transients |
Signal ports, ± 2 kV Power ports, ± 2 kV |
| EN 61000-4-5, surge |
Signal ports unbalanced, ± 2 kV line to earth, ± 2 kV line to line Signal ports balanced, ± 2 kV line to earth, ± 1 kV line to line Power ports, ± 2 kV line to earth, ± 2 kV line to line |
| EN 61000-4-6, conducted RF immunity |
Signal ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz Power ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz |
| EN 61000-4-8, power frequency magnetic field | Enclosure, 100 A/m, 50 Hz, 16.7 Hz & 0 Hz |
| EN 61000-4-9, pulsed magnetic field | Enclosure, 300 A/m, 6.4 / 16 μs pulse |
| EN 61000-4-11, Voltage dips and interruption |
AC power ports: 10 & 5 000 ms, interruption 10 & 500 ms, 30% reduction 100 & 1 000 ms, 60% reduction |
| EN 61000-4-16, Mains freq. 50 Hz | Signal ports, 100 V 50 Hz line to earth |
| SS 436 15 03, Mains freq. 50 Hz | Signal ports, 250 V 50 Hz line to line |
| EN 61000-4-29, voltage dips and interruption |
DC power ports: 10 & 100 ms, interruption 10 ms, 30% reduction 10 ms, 60% reduction +20% above & –20% below rated voltage |
| EN 55022, radiated RF emission | Enclosure, class A |
| FCC part 15, radiated RF emission | Enclosure, class A |
| EN 55022, conducted emission |
AC power ports, class A DC power ports, class A |
| FCC part 15, conducted emission | AC power ports, class A |
| Safety | |
| EN 60950-1, dielectric strength |
Signal port to other isolated ports, 2 kVrms 50 Hz 1 min Power port to other isolated ports, 3 kVrms 50 Hz 1 min, 2 kVrms 50 Hz 1 min (@ rated power <60 V) |
| Climatic | |
| Temperature, operating | -25 to +65ºC (–13 to +149°F) |
| Temperature, storage | -25 to +70ºC (–13 to +158°F) |
| Humidity, operating | 5 to 95% relative humidity |
| Humidity, storage | 5 to 95% relative humidity |
| Enclosure | |
| Enclosure | UL 94, PC / ABS, flammability class V-1 |
| Dimensions (W x H x D) | 55 x 100 x 132 mm |
| Weight | 0.3 kg |
| Degree of protection | IP 20 |
| Cooling | Convection |
| Mounting | Horizontal on 35 mm DIN-rail |
| Mechanical | |
| IEC 60068-2-6, vibration |
Operating: 7.5 mm, 5 – 8 Hz 2 g, 8 – 500 Hz |
| IEC-60068-2-27, shock | Operating, 15 g, 11 ms |
| Interface specifications, power | |
| Rated voltage | 12 to 48 VDC |
| Operating voltage | 10 to 60 VDC |
| Rated current |
360 mA @ 12 VDC 180 mA @ 24 VDC 100 mA @ 48 VDC |
| Rated frequency | DC |
| Inrush current | 0.51 A2s |
| Startup current | 1 A |
| Polarity | Reverse polarity protected |
| Redundant power input | Yes |
| Isolation to | Ethernet, RS-232, RS-422 |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm2 (AWG 24 – 12) |
| Shielded cable | Not required |
| Interface specifications, RS-232 | |
| Electrical specification | EIA RS-232 |
| Data rate | 300 bit/s - 115.2 kbit/s |
| Data format | 8 data bits, none parity, 1 stop bits |
| Protocol | PPP |
| Transmission range | 15 m / 49 ft |
| Isolation to | Power and Ethernet |
| Galvanic connection to | RS-422 |
| Connection | 9-pin D-sub male (DTE) |
| Shielded cable | Not required |
| Number of ports | 1 |
| Interface specifications, RS-422/485 | |
| Electrical specification | EIA RS-422 4-wire twisted pair |
| Data rate | 300 bit/s to 115.2 kbit/s |
| Data format | 8 data bits, none parity, 1 stop bit |
| Protocol | PPP |
| Transmission range | ≤ 1200 m, depending on data rate and cable type (EIA RS-422) |
| Settings | 120 Ω termination and failsafe biasing 680 Ω |
| Protection | Installation Fault Tolerant (up to ±60 V) |
| Isolation to | Power and Ethernet |
| Galvanic connection to | RS-232 |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm2 (AWG 24 – 12) |
| Shielded cable | Not required |
| Number of ports | 1 |
| Interface specifications, 10/100BaseTX | |
| Electrical specification | IEEE std 802.3. 2000 Edition |
| Data rate | 10 Mbit/s, 100 Mbit/s, manual or auto. IEEE 802.3 2000 edition. |
| Duplex | Full or half, manual or auto |
| Transmission range | 100 m |
| Isolation to | Power, RS-232 and RS-422 |
| Connection | RJ-45 |
| Shielded cable | Shielded cable is required if unit is used in harsh environment |
| Number of ports | 4 |
