| Product description | |
| Status | Active |
| Article number | 3641–0340 |
| Ports | 8 x 10/100BaseTX, M12 contact |

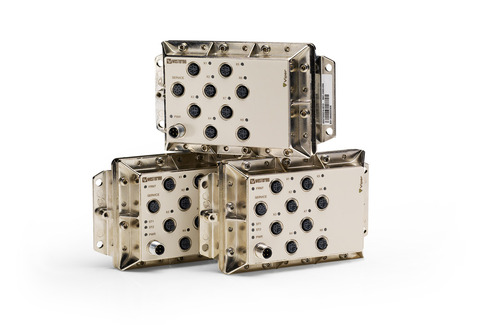

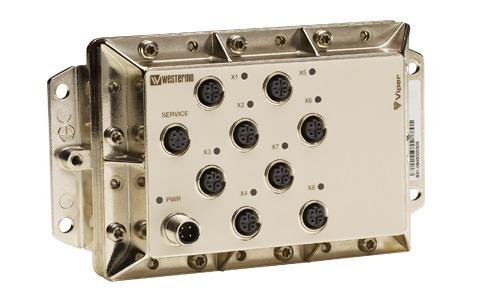

| Description | Ultra slim M12 switch platform |
| Warranty period | 5 Years |
| Reliability prediction | |
| MTBF, operating |
Ground Benign: 150 years @ 20ºC 147 years @ 40ºC 135 years @ 60ºC Ground Mobile: 9,87 years @ 20ºC 9,85 years @ 40ºC 9,79 years @ 60ºC Ground Fix: 28,54 years @ 20ºC 28,43 years @ 40ºC 27,95 years @ 60ºC |
| Service life, operating | Operating, 10 year |
| EMC (Electromagnetic Compatibility) | |
| EN 61000-6-1 | Immunity residential environments |
| EN 61000-6-2 | Immunity industrial environments |
| EN 55024 | Immunity IT equipment |
| EN 55022 | Emission IT equipment |
| EN 61000-6-3 | Emission residential environments |
| EN 61000-6-4 | Emission industrial environments |
| EN-50155 | Railway applications - Electronic equipment used on rolling stock |
| EN-50121-3-2 | Railway applications - EMC: Rolling stock – Apparatus |
| FCC part 15 | Class B |
| EN 50121-4 | Railway signalling and telecommunications apparatus |
| IEC 62236-4 | Railway signalling and telecommunications apparatus |
| EMC specifications | |
| EN 61000-4-2, ESD |
Enclosure contact, ± 6 kV (crit A) Enclosure air, ± 8 kV (crit A) |
| IEC 61000-4-3, RF field AM modulated |
Enclosure: 20 V/m 80% AM (1 kHz) 80 – 2500 MHz (crit A) |
| EN 61000-4-4, fast transients |
Ethernet ports, ± 2 kV (crit A) Power port, ± 2 kV (crit A) Earth port, ± 2 kV (crit A) |
| EN 61000-4-5, surge |
Fault port, ± 2 kV line to earth (crit A) Ethernet ports, ± 2 kV line to earth (crit A) Ethernet ports, ± 2 kV line to earth (crit A) |
| EN 61000-4-6, conducted RF immunity |
Ethernet ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz (crit A) Power port, 10 V 80% AM (1 kHz), 0.15 – 80 MHz (crit A) |
| EN 61000-4-8, power frequency magnetic field |
Enclosure: 1000 A/m 50 Hz 300 A/m 16.7 Hz, 60 Hz, DC (crit A) |
| EN 61000-4-9, pulsed magnetic field | Enclosure, 300 A/m (crit A) |
| EN-50155, voltage dips and interruption |
DC power ports: 10 ms, interruption (crit A) 100 ms +- 40 % above/below rated voltage (crit A) |
| EN 55022, radiated RF emission | Enclosure, Class B |
| FCC part 15, radiated RF emission | Enclosure, Class B |
| EN 55022, conducted emission | DC power port & Ethernet ports, Class B |
| FCC part 15, conducted emission | DC power port, Class B |
| Safety | |
| EN 60950-1, dielectric strength | Ethernet ports to other isolated ports, 707 VDC 1 min |
| Climatic | |
| Temperature, operating | –40 to +70ºC (–40 to +158ºF) |
| Temperature, storage | –40 to +70ºC (–40 to +158ºF) |
| Humidity, operating | 5 to 95% relative humidity |
| Humidity, storage | 5 to 95% relative humidity |
| Enclosure | |
| Enclosure | UL 94, Nickel coated zinc, flammability class V-1 |
| Dimensions (W x H x D) | 175 x 100 x 53,4 mm (6.88 x 3.93 x 2.10 in) |
| Weight | 1 kg |
| Degree of protection | IP 65 when all ports are protected/connected else IP 40 |
| Cooling | Convection |
| Mounting | DIN Rail or wall mounted |
| Mechanical | |
| IEC 60068-2-6, vibration |
Random simulated long life, not operating: Vertical: 7.9 m/s2 Transverse: 7.9 m/s2 Longitudinal: 7.9 m/s2 3 x 5 h Random functional, operating: Vertical: 1.0 m/s2 Transverse: 1.0 m/s2 Longitudinal: 1.0 m/s2 3 x 10 min |
| IEC-60068-2-27, shock |
Half sine pulses, operating: Vertical: 50 m/s2 Transverse: 50 m/s2 Longitudinal: 50 m/s2 30 ms, 3 x 6 shocks Sawtooth, operating: Vertical: 100 m/s2 Transverse: 100 m/s2 Longitudinal: 100 m/s2 11 ms, 3 x 6 shocks |
| Interface specifications, power | |
| Rated voltage | 24 to 110 VDC |
| Operating voltage | Up to 110 VDC |
| Rated current |
30 mA @ 110 VDC 90 mA @ 24 VDC |
| Rated frequency | DC |
| Inrush current | Max 0.02 A2s @ 24 – 110 VDC |
| Polarity | Reverse polarity protected |
| Redundant power input | No |
| Isolation to |
Connections X1 – X8 and to ground, 1500 VAC. Fault relay belongs to the same isolation group as the power supply lines (fault relay signals are also contained within PWR). |
| Connection | 4 pin male M12 connector with A-code |
| Connector size | M12, recommended cable area 0.5 mm2 recommended (minimum 0.25 mm2), cable dimensions depend on choice of M12 connector |
| Shielded cable | Not required, twisted pair is recommended |
| Fault relay resistance | < 10 Ω |
| Operating voltage | Up to 110 VDC |
| Interface specifications, 10/100BaseTX | |
| Electrical specification | IEEE std 802.3. 2005 Edition |
| Data rate | 10 Mbit/s or 100 Mbit/s |
| Duplex | Full or half |
| Circuit type | TNV-1 |
| Transmission range | 100 m / 328 ft |
| Isolation to |
Other Ethernet ports, 500 VAC PWR, 1500 VAC |
| Galvanic connection to | None, except for shielded contact to housing |
| Connection | 4-pole M12 female with D-code |
| Shielded cable | Not required, twisted pair is recommended |
| Conductive housing | Nickel plated zinc, metal housings of X1-X8 also connected to the housing |
| Number of ports | 8 Ethernet (X1-X8) |
