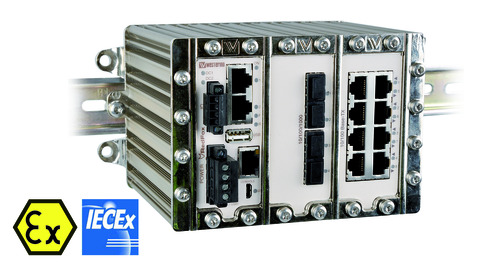

只使用工业级部件使得RedFox EX的MTBF(平均无故障时间)达到34.5万小时并且可确保长使用寿命。设备外壳无风扇或散热孔设计,可实现宽工作温度范围–40到+70°C(–40到+158°F)。RedFox EX已经过威斯特摩和外部测试机构的检测,满足EMC、隔离、振动和冲击标准,并达到适用于重型工业环境和铁路轨旁应用的最高水平。
Protocols and functionality | |
Resiliency and high availability |
Fast Reconfiguration of Network Topology (FRNT) FRNT ring coupling Multilink dual homing IEEE 802.1D (STP) and IEEE 802.1w (RSTP) IEEE 802.1AX/802.3ad Link Aggregation |
Layer 2 switching |
IEEE 802.1Q Static VLAN and VLAN Tagging IEEE 802.3x Flow Control IGMPv2/v3 snooping AVT Dynamic VLAN (Adaptive VLAN Trunking) Management VLAN (Management Interface concept) Static Multicast MAC filters |
Layer 2 QoS | IEEE 802.1p Class of Service |
Layer 2 security |
IEEE 802.1X Port Access Control MAC Authentication |
IP routing, cyber security, firewall and VPN |
Static IP routing Dynamic IP routing • OSPFv2 • RIPv1/v2 • Robust VRRP • Static Multicast Routing Stateful Inspection Firewall • NAT and 1-1 NAT, Proxy ARP for 1-1 NAT • Port Forwarding IKEv1, certificates and PSK • IKEv1 • ESP • VPN failover GRE Multinetting Loopback Interface |
Manageability |
Management tools • Web interface (HTTP and HTTPS or CLI (SSHv2 or Telnet) • SNMPv1/v2c/v3 • Flexible management of configuration and log files Flexible alarm/event handling system USB Fluid configuration (Available for products with USB port) Digital I/O and Flexible alarm/event handling system Syslog (log files and remote syslog server) Port Monitoring SNTP (NTP client) PPPoE client DHCP client DHCP server including option 82 DHCP relay agent including option 82 DDNS |
SNMP MIB support |
RFC1213 MIB-2 RFC2863 Interface MIB (ifXTable) RFC2819 RMON MIB (etherStatsTable) RFC4188 Bridge MIB RFC4318 RSTP MIB RFC4363 Q-BRIDGE MIB RFC4836 MAU MIB RFC4133 Entity MIB (entityPhysical) RFC4319 HDSL2/SHDSL MIB RFC3433 Entity Sensor MIB RFC3621 Power Ethernet MIB WESTERMO PRIVATE MIB |
