| Product description | |
| Status | Active |
| Article number | 3642-0200 |
| Ports | 4 x 10/100 Base-TX: RJ-45 |

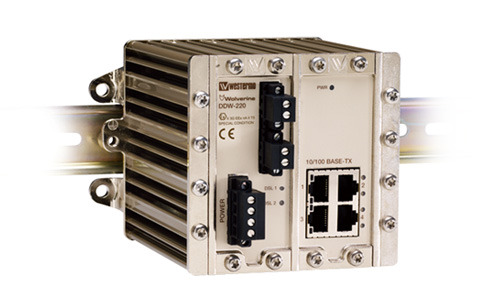

| Description | Industrial Ethernet Extender |
| Warranty period | 5 Years |
| Approvals | |
| Hazardous locations |
ATEX, EN 60079-0 and EN 60079-15. (Ex nA IIC T4 G) FM Approvals, Class 1 Div 2 |
| Standard compliance | |
| SHDSL | NEMKO, ITU-T G.991.2 |
| Reliability prediction | |
| MTBF, operating | 700 000 hours @ 25°C, MIL-HDBK- 217F |
| EMC (Electromagnetic Compatibility) | |
| EN 61000-6-2 | Immunity industrial environments |
| EN 55024 | Immunity IT equipment |
| EN 61000-6-4 | Emission industrial environments |
| FCC part 15 | Class A |
| EN 50121-4 | Railway signalling and telecommunications apparatus |
| EMC specifications | |
| EN 61000-4-2, ESD |
Enclosure contact, ± 6 kV Enclosure air, ± 8 kV |
| IEC 61000-4-3, RF field AM modulated |
Enclosure: 20 V/m 80% AM (1 kHz), 80 – 1000 MHz 10 V/m 80% AM (1 kHz), 1400 – 2100 MHz 5 V/m 80% AM (1 kHz), 2100 – 2500 MHz 1 V/m 80% AM (1 kHz), 2500 – 2700 MHz |
| EN 61000-4-4, fast transients |
Signal ports, ± 2 kV Power ports, ± 2 kV |
| EN 61000-4-5, surge |
Signal ports balanced, ± 2 kV line to earth, ± 1 kV line to line Power ports, ± 2 kV line to earth, ± 2 kV line to line |
| EN 61000-4-6, conducted RF immunity |
Signal ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz Power ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz |
| EN 61000-4-8, power frequency magnetic field | Enclosure, 300 A/m |
| EN 61000-4-9, pulsed magnetic field | Enclosure, 300 A/m |
| EN 61000-4-16, Mains freq. 50 Hz | Signal ports, 100 V 50 Hz line to earth |
| SS 436 15 03, Mains freq. 50 Hz | Signal ports, 250 V 50 Hz line to line |
| EN 61000-4-29, voltage dips and interruption |
DC power ports: 10 & 100 ms, interruption 10 ms, 30% reduction 10 ms, 60% reduction +20% above & –20% below rated voltage |
| EN 55022, radiated RF emission | Enclosure, class A |
| FCC part 15, radiated RF emission | Class A |
| EN 55022, conducted emission | DC power ports, class B |
| Safety | |
| Safety |
EN 60950-1, IT equipment |
| EN 60950-1, dielectric strength |
Signal port to other isolated ports, 1500 Vrms 50 Hz 1 min Power port to other isolated ports, 1500 Vrms 50 Hz 1 min |
| Climatic | |
| Temperature, operating | –40 to +70°C (–40 to +158°F) |
| Temperature, storage | –40 to +70°C (–40 to +158°F) |
| Maximum surface temperature | 135ºC (temperature class T4) |
| Humidity, operating | 5 to 95% relative humidity |
| Humidity, storage | 5 to 95% relative humidity |
| Enclosure | |
| Enclosure | UL 94, aluminium/zink, flammability class V-0 |
| Dimensions (W x H x D) | 134 x 100 x 122 mm (5.25 x 3.93 x 4.80 in) |
| Weight | 1.5 kg |
| Degree of protection | IP 40 |
| Cooling | Convection |
| Mounting | Horizontal on 35 mm DIN-rail |
| Mechanical | |
| IEC 60068-2-6, vibration |
Operating, 7.5 mm, 5 – 8 Hz 2 g, 8 – 500 Hz |
| IEC-60068-2-27, shock | Operating, 15 g, 11 ms |
| Interface specifications, power | |
| Rated voltage | 20 to 48 VDC |
| Operating voltage | 16 to 60 VDC |
| Rated current |
300 mA @ 20 VDC 150 mA @ 48 VDC |
| Rated frequency | DC |
| Inrush current | 3.1 A2s |
| Startup current | 400 mA |
| Polarity | Reverse polarity protected |
| Redundant power input | Yes |
| Isolation to | Ethernet, SHDSL |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm2 (AWG 24 – 12) |
| Shielded cable | Not required |
| Electrical specification | IEEE std 802.3 2000 Edition |
| Data rate | 10 Mbit/s, 100 Mbit/s, manual or auto |
| Duplex | Full or half |
| Transmission range | 100 m / 328 ft |
| Isolation to | Power, SHDSL |
| Connection | RJ-45 |
| Shielded cable | Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails. |
| Number of ports | 4 |
| Interface specifications, DSL | |
| Electrical specification | ITU-T G.991.2 Annex B |
| Data rate | 192 kbit/s to 5696 kbit/s |
| Protocol | EFM according to IEEE 802.3-2004 |
| Transmission range | According to ITU-T G.991.2 depending on the line quality |
| Protection | Overcurrent / overvoltage protection circuit and varistor |
| Isolation to | Power, Ethernet |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm2 (AWG 24 – 12) |
| Shielded cable | Not required |
| Number of ports | 2 |
